Spring REST 1 - Anatomy of a Non-Anemic Spring Application

Posted by bit1 on March 3, 2026

This is the first of three posts exploring creating, testing, deploying, and observing a non-trivial REST application created using Spring Boot:

  • Part 1: build a modern Spring REST application utilising domain-driven and CQRS architecture and sensible unit tests
  • Part 2: deploy the application to a local Kubernetes cluster using KIND, Helm, and the new GatewayAPI for HTTP access
  • Part 3: experiment with using Terraform to create the local development environment and add Prometheus and Grafana observation

I wrote a simple non-trivial Spring REST application to experiment with the following technologies:

  • Java 25 (LTS)
  • Spring Boot 4.x (Spring 7.x)
  • Spring Data JPA / Hibernate 7
  • H2 (tests) + Postgres (runtime)
  • AssertJ
  • K6 (load testing)

… with these aims:

  • non-anemic domain model using aggregates
  • separate Command and Query operations
  • sensible tests aimed at specific layers of the application

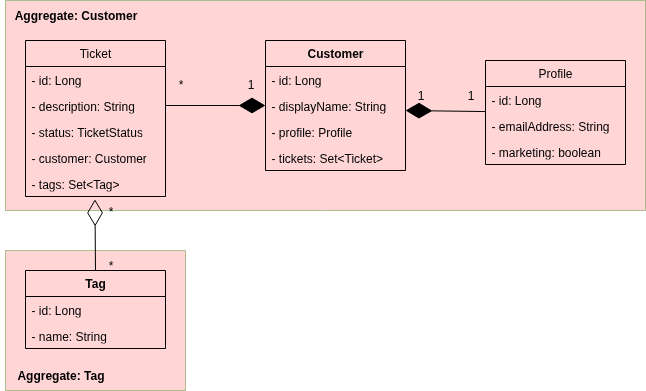

The domain looks like this:

Image alt

The application is broken down into layers.

  • Domain / JPA Repository Layer
  • Application Service Layer
  • REST Controller Layer

Image alt

I will briefly summarise each of these layers, and point to where the important code and tests are.

Domain / JPA Layer

The main classes in this layer are:

A focus was to avoid an anemic domain model by using aggregates:

An aggregate is a cluster of associated objects treated as a single unit for data changes, with a clearly defined boundary and a root entity that enforces invariants.

— Eric Evans, Domain-Driven Design

Our application has 2 aggregates, Customer and Tag. In this first iteration I am going to focus on the Customer aggregate:

Image alt

The basic idea is that by grouping entities into logical groups (called an aggregate) and controlling access to this group through a single entity (called the aggregate root) we can create better systems by preventing invalid state and centralising invariants.

Enforcement of invariants becomes simpler, because it happens inside the aggregate, rather than leaking into services. And since all traffic to the aggregate goes via the aggregate root, its easier to reason over.

In this design, the aggregate root does not expose internal entities directly. For example, take Customer, our aggregate root. It has no entity objects as return values. And it is the only entity in the aggregate with public methods - neither Ticket nor Profile have any.

Also note that all the entities in the aggregate focus on domain behaviour (like resolveTicket()) rather than setters (like setStatus('resolved')).

Domain tests for the sample application include unit tests that run without any JPA context. And @DataJpaTest tests:

Application Service Layer

The main classes in this layer are:

It can be useful to separate the processes that query a system from the processes that change it. That way we can implement different approaches (or even different models) for the query and the mutate parts. This is the basis of the generic Object Oriented pattern Command Query Separation, and the more involved Command Query Responsibility Segregation (CQRS):

The really valuable idea in this principle is that it’s extremely handy if you can clearly separate methods that change state from those that don’t. This is because you can use queries in many situations with much more confidence, introducing them anywhere, changing their order. You have to be more careful with modifiers.

— Martin Fowler

The application services are split between CustomerCommandService and CustomerQueryService. This is not full CQRS — just a pragmatic separation to keep writes behaviour-focused and reads efficient.

CustomerCommandService talks directly to the Customer aggregate root to apply changes to the data using Command objects. One outcome of this approach is you can end up with a lot of Command objects, since the recomendation is usually to use one object per command. These simple data carriers can be represented with records for convenience.

CustomerQueryService uses its CustomerQueryRepository and JPQL, avoiding the domain model entirely. The Query side returns projections in the form of records.

Tests for this layer can be found in:

REST Controller Layer

The main classes in this layer are:

This is a vanilla Spring REST controller layer. Its thin, uses DTOs for requests, and basically calls the Application Layer.

Tests for this layer can be found in:

Seeder

The demo application includes a seeder which fills the database with 5,000 Customers and related data. The seeder classes are:

The SeedCommandLineRunner runs DemoDataSeederService when the Spring profile is “seed”.

Docker

You can run the Spring Demo application along with a Postgres database and the above seeder using Docker/docker-compose. The important files are:

Running the following will build and seed the application:

docker-compose up --build --detach

To just run the application and Postgres (no seeding):

docker-compose -f docker-compose-no-seed.yaml up --build --detach

GitHub build script

I have included a GitHub Actions script to publish the container image produced by the Spring Demo application. It is published to GitHub Container Registry.

This image is used by Part 2 and Part 3 of this series of posts.

K6 tests

Provided K6 is installed, you can run write and read tests. Run the write test like this:

k6 run \
  -e TEST_PROFILE=smoke \
  -e BASE_URL=http://localhost:8080 \
  ./k6/write-test.js

If thats clean, you can try running using TEST_PROFILE=load and TEST_PROFILE=stress.

Same for the read tests:

k6 run \
  -e TEST_PROFILE=smoke \
  -e BASE_URL=http://localhost:8080 \
  ./k6/read-test.js

Convenience up and down scripts

I have included convenience scripts for bringing the system up (up.sh) and taking it down (down.sh):

Conclusion

Thats it! We now have a Spring REST Demo application with:

  • a non-anemic domain model using aggregates
  • separate Command and Query operations
  • sensible tests aimed at specific layers of the application
